i3MS Solution Architecture

Overview

The purpose of INTEGRATED MINES AND MINERAL MANAGEMENT SYSTEM (i3MS) solution is to enable the Department of Steel & Mines officials to regulate the mining activities through electronic mode. In past, each and every activity were managed and processed manuallyat the Directorate and field offices. Hence there were delays in processing of applications which sometimes gets processed in multiple offices. With high demand from Industry and lack of resources at the Government, there was high chance of mistakes.

Due to the reason, Department of Steel &Mines initiated Program to regulate the monitoring mechanism through ICT intervention. After through iteration with a group of Academician and industry from IIT, IT Department, IIIT Bhubaneswar and ORSAC (state arm of ISRO) a web based solution was proposed. The proposed plan was further validated from the large industrial houses like TATA Steel, OMS, SAIL and MCL. It was proposed to start on a pilot and scale it up rapidly.

Scope

There are many critical business processes involved in various level of activities related to mineral production and consumption by the consumers. To ensure end to end mapping of mining regulatory and monitoring process, field visits and interviews of variety of stakeholders was done. The difficulties faced day-to-day by the Government were mapped.

• Monitoring Statutory Compliance of mines as well as licensee towards the mining operation and mineral dispatch
• Monitoring day-to-day mineral production and cumulative production against approved qty. in mining plan, environment clearance and OSPCB clearances.
• Monitoring total permissible dispatch quantity for domestic Sale, export, consumption inside and outside state.
• Monitoring Govt. & Mines Weigh Bridge Activity towards checking.
• Checking of Actual dispatched Quantity through Check Gates
• Verification of Original Transit Passes, which is sometimes tampered to do illegal transportation
• Difficult to track Monthly, Quarterly and Annual returns
• Difficult to find the actual mineral stock at the Pit head and Screening or Crusher Plant site.

To address the above difficulties, it was decided to develop on aStandard Framework, open ended, modular, extendible, portable, scalable, maintainable, and reusable with e-Governance standard compliance.

The mines and licensee points are spread over the entire state, considering the wide geographical scope and operational complexity, scope of the project was to Customize, Develop, Test, Deploy, Operate and Maintain the proposed "Web based Integrated Mines & Mineral Management System (i3MS)".

The following outlines the broad areas of scope of work for the System Integrator. As a broad scope the SI will perform the following primary tasks.

• System Study, Design, Development & Implementation of all functionalities for State Specific Software Application Modules
• Application Integration with other departments & neighboring State of Odisha
• Application Software deployed at State Data Centre of Odisha
• Training, Capacity Building & Change Management required for the project, covering
• Department of Mines and all the stake holders involved in i3MS Project
• Operation & Maintenance of the Overall System Solution (Hardware, System Software, application Software and other Infrastructure) for 2 years after the UAT/Go live
• Establishment of IT Project Management Unit (IT-PMU) at the State Level, Project implementation Unit (PIU) at District & Circle level & Helpdesk Management at the State Level
• Security Audit, Functional and load test of the developed application through certified agency

The Solution also needed to developed & innovate to give benefit to all the stakeholders:

• Sensing, control & making plan for the Mining Activity.
• Solution to provide a minimum manual intervention for better productivity &business continuity.
• Solution to increase efficiency for monitoring, transparency and competitiveness.
• Solution to provide where dependency on network connectivity is minimal data transmission to central server.
• Solutions to provided for mobile squad, who can cross check the mineral authenticity at any place at any point of time.

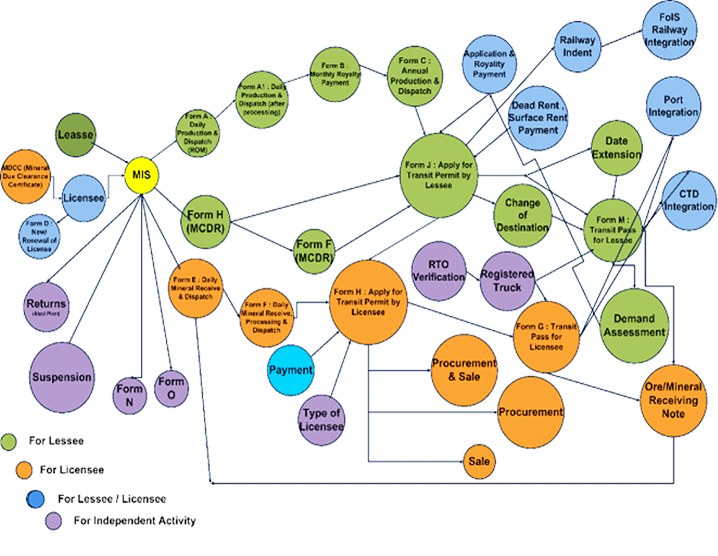

There are various modules identified to fulfill the Departments objective for Regulating, monitoring mining activities and making transparency. The module process flow is based on the ORISSA MINERAL (PREVENTION OF THEFT, SMUGGLING & ILLEGAL MINING AND REGULATION OF POSSESSION, STORAGE TRADING AND TRANSPORTATION, STORAGE, and TRADING AND TRANSPARENCY) RULES 2007and MINERAL CONSERVATION & DEVELOPMENT RULES, 1988, Govt. of India. The software solutions,

Modules and application integrations are ...

Solution Overview

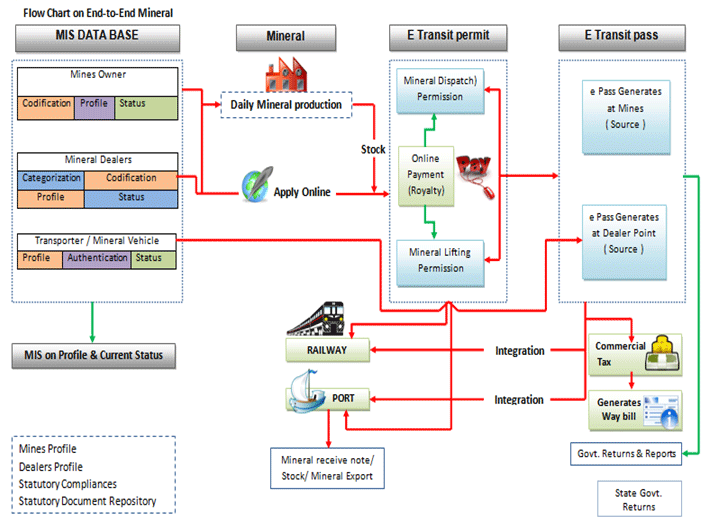

The solution enables the stake holders / end users to provide and gather information on real time basis. This facilitates the end user to maintain mining clearance, online application and issue of Mineral Transit Permit, transit passes, no dues clearance certificate, registration of mineral carrier and validating from Transport department for issuance of mineral carrier certificate. The consignor can only transport the permitted quantity of Mineral to the destination. After loading, the mineral carrier at source, it will check at the Govt. weigh bridge en route and at the railway siding to the destination point. Various Checks and measures has taken into consideration for smooth operation of Mineral Transport.

This system is capable enough to auto generate various monthly progress reports. The proposed software application have enough capacity to complete the cycle of mineral production and dispatch for all transactions along with facilitate for cancellation of any certificates issued by the authority. The system will re-consolidate the transaction and generate various MIS report, which would help Department of Steel & Mines to take right decision at right time. Also, it helps stakeholders to reconcile their accounts of Mineral Management.

The software solutionhasvarious extensive features like premium information service to all Stakeholders covering global and domestic markets with statistics and expert market commentary. All the Stakeholders will be provided with Secured Login ID and Password through which they will update their approval status online. Apart from this, there are various other realtime data/statistics also provided for ease of use and business continuity.

In addition, the statistical information which includes name of the mines, address of mines, District, location, Block, GP, Village and etc.. All the Stake holders provided with Secured Login ID & Password through which they will apply/update their activities time to time. They will be updating their own required field in Mining Lease (ML)/Renewal of Mining Lease (RML)/Regulatory on time to time basis which will create a complete database of MIS report. The no due clearance certificate will be facilitated for mines/Licensee for getting a Clearance Certificate of Mining Dues. This due can be for the Mines or the Licensee. The Mining Dues will be of Royalty, Dead Rent, Surface Rent or any other fines made so far.

The software application will have a major change in the license system. It emphasizes an online issue of License in the State. The applicant will apply online for license or renewal of license. The licensee is obtained by applying to the Deputy Director of mines/ Mining Officer / Assistant Mining Officer with the list of Minerals along with a fee in the form of online payment. The required document will be attached along with the online application. Later it will be verified at different stages and then the licensee will be issued to the applicant as per the purpose of business mentioned in the application, which can be tracked at the time of issuing transit permit to them.

Transit Permit & transit passed will be issued through online after physical verification and books of account verification at the mines end by the district/ circle mining office level. The verification report of mineral raising, stack, stock and Type/grade of mineral status report will be managed in the software. The verification report will be treated as the note sheet of the verification report. At each stage the system will facilitate to view the approval history to the stake holders.

The Mineral Transporter will also be registered in the application and needs to declare the list of mineral carriers they need to engage for transportation. The transporter module will have the capability to capture online request from the applicant and the concerned authority would receive online request and approve through workflow system. After approval, the system would generate Transporter Certificate, which is a downloadable document from their respective login. The module will facilitate to update the vehicle list time-to-time for better management of vehicle owned by the transporters.

The online pass system would have capacity for auto capturing the gross weight of mineral loaded truck at the mines weigh bridge as the Mines Weighbridges are the point of origin for material dispatch. At the time of Loading of materials, system generates online transit pass and the system would check the mineral carrier certificate validity and status of vehicle, that the vehicle is free from any illegal activities. Online pass system should have capacity to use in isolated places where there is no infrastructure and data needs to be synchronizing to the central database because of unavailability of internet. It generates the source data which is very important for generating of e Pass. To enable the Mines weighbridge link to central database it is essential to have proper infrastructure at the Weigh and required manpower. Such infrastructure will be provided by the respective mines owner.

Railway sidings are one of the end points for mineral dispatch. Mines and licensee dispatches their minerals to the end user through Rake( Railway Transportation System). So, to measure the quantity of materials received at railway sidings proper infrastructure are required and the system should check the transit passes and authenticate to allow mineral carrier for loading Rake. Check gates are the places where the carriers with mineral get checked en route. The minerals should be checked at check gates, for which the check gate should check the authenticity of the transit passes from central database and allow carrier to move to the destination. So at the Government Check gate, the proper infrastructure needs to be developed.

The proposed software application architecture is based on open ended system, modular, extendable, portable, scalable, maintainable, and reusable architecture. So in future the department is facilitate with for such provision to incorporate new modules and services which can extend services to the other stake holders for updating/synchronizing statutory clearances for ML/RML or sharing legacy data.

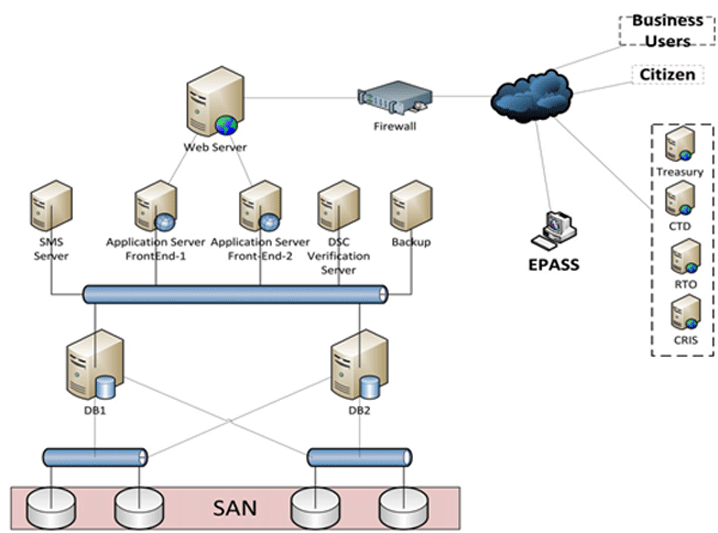

Network Architecture SDC

Software Solution Architecture

Integrated Mining Regulatory System

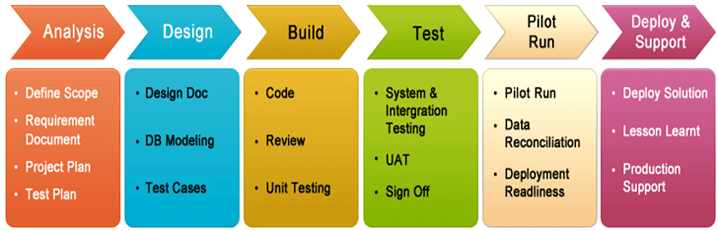

Project Implementation Methodology

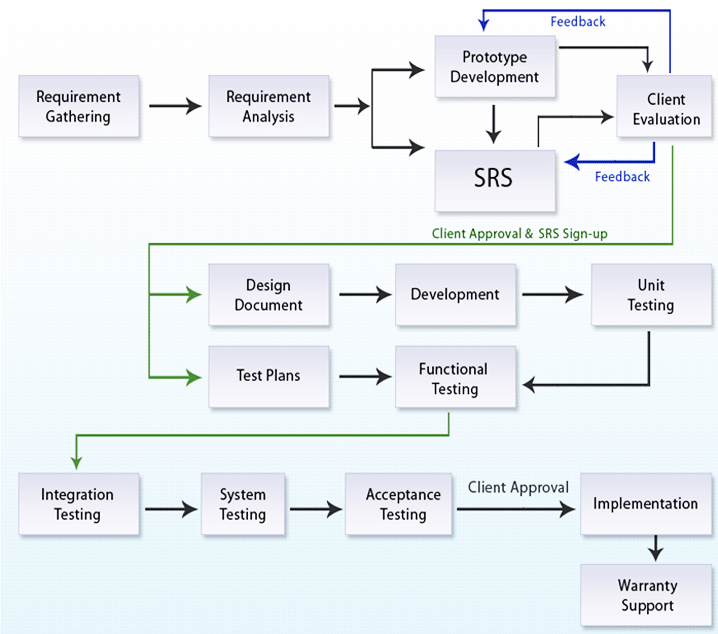

Project Development Process
